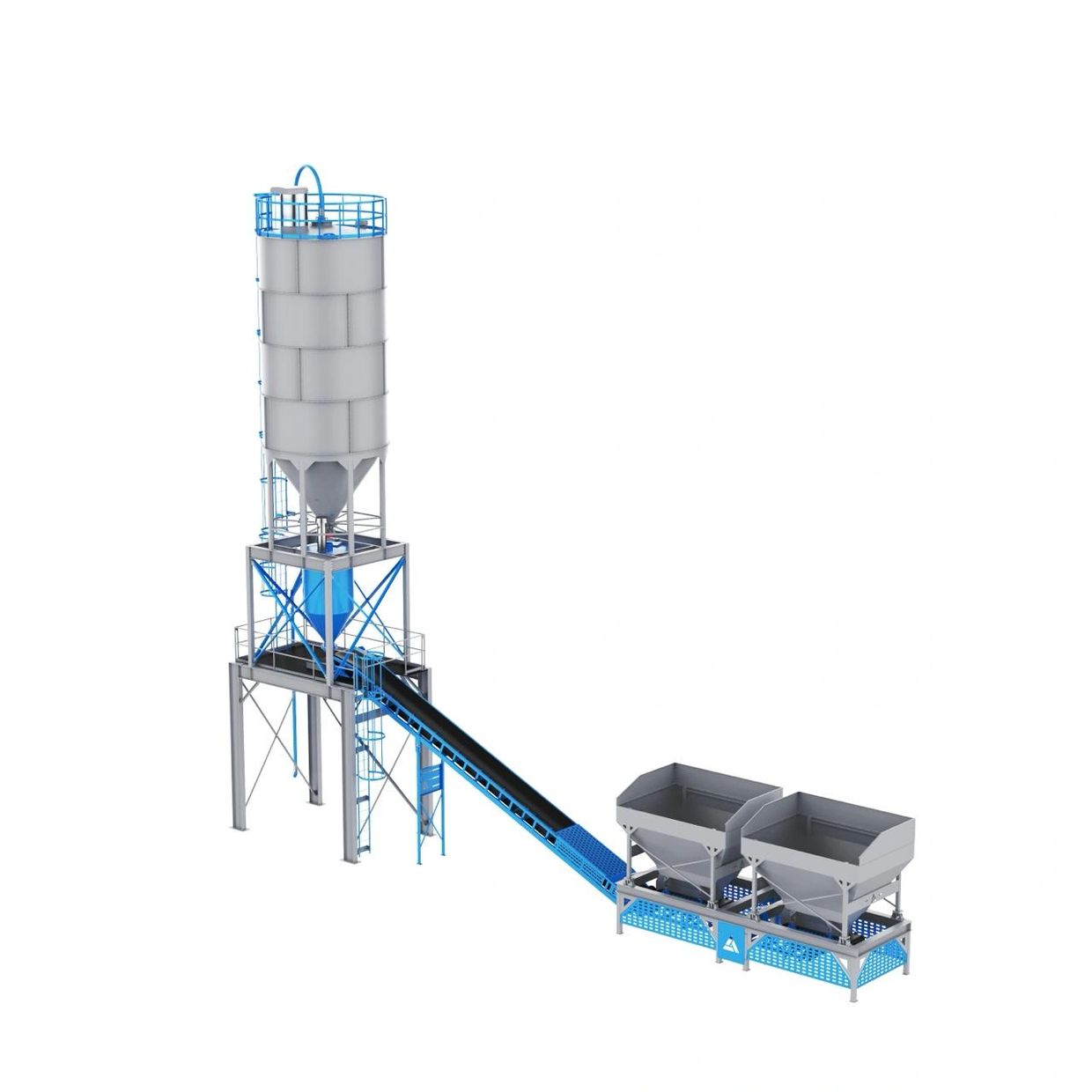

Stationary Batch Plant Model SP100A
.jpeg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:1209,cg:true)
Features
This High Capacity Concrete Batch Plant produces up to 170 yd³/hr (130 m³/hr) of concrete. Paired with our BatchMate™ automation system, it delivers accurate and consistent batching with minimal operator input.
The drop conveyor system, combined with a standard 30-inch transfer conveyor, ensures smooth material flow and enables an exceptional 99% accuracy rate. Engineered for productivity and efficiency, this plant provides advanced automation in a budget-friendly package, making it a strong choice for both primary production and satellite operations.
- Capacity: 170 yd³/hr • 130 m³/hr of concrete production
- Discharge Height: 16 ft • customizable options available
- Powder Storage: 220,000 lbs • 100,000 kg • 110 tons total capacity
- Aggregate Hoppers: 66,000 lbs • 30,000 kg each
- Transfer Conveyor: 30 in wide for smooth material handling
- Feed Conveyor: 24 in wide for efficient delivery
- Powder Bin Discharge: 12 in outlet for consistent powder flow
- Gate Options: Drop conveyor or clam gate
- Water Metering: 2″–3″ Badger meter for accurate flow measurement
- Automation: Integrated with BatchMate™ for precise and efficient batching
